Industrial Thermal Label Printer

WTPTM2408E

WTPTM2408E Industrial Thermal Label Printer engineered for high volume label printing. Featuring high print speeds of up to 203 mm (8 inches) per second, heavy duty die cast aluminium design, large 450 m ribbon capacity and a range of interface options.

MAKE AN ENQUIRY

Industrial Thermal Label Printer

Nullam a mauris leo. Phasellus suscipit fermentum nisl, sed tristique ante feugiat eu. Donec eget iaculis dolor, non laoreet augue. Fusce facilisis quam porta sapien viverra, eget luctus nisl faucibus. Ut viverra augue vel nisl vulputate, et cursus tellus auctor. Mauris accumsan, eros quis elementum pellentesque, mi ante sodales arcu, et malesuada arcu lectus at nibh. Pellentesque interdum varius arcu, vulputate pulvinar mi condimentum non. Sed id venenatis mi. Nulla facilisi.
You can also purchase blank thermal labels directly from Wedderburn Labels, or have custom labels produced by our talented Label Manufacturing team.

  • Thermal direct or thermal transfer label printing
  • 203 dpi print resolution
  • LCD display with 3 button menus
  • Large ribbon capacity

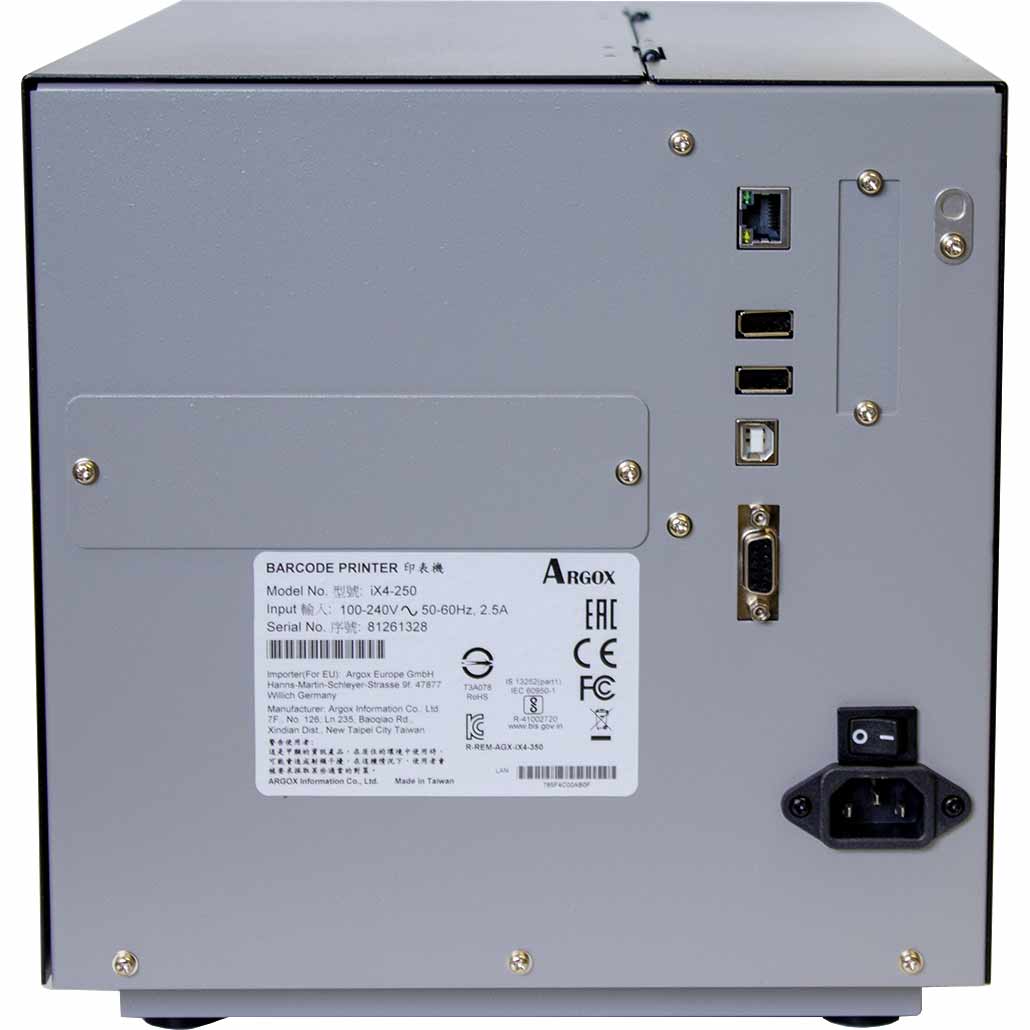

  • RS232, USB and Ethernet Interface
  • 1D and 2D barcode printing
  • Gap transmissive sensor (position adjustable)
  • Black mark reflective sensor (position adjustable)
  • Head open sensor
  • Ribbon end sensor
  • Compatible for use with; continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) media types
  • Bartender Ultralite label design software
Dimensions (mm)
250 (W) x 418 (D) x 263 (H)
Print Method
Direct Thermal and Thermal Transfer
Printer Type
Industrial
Print Head Type
Flat Head
Maximum Print Speed
203 mm per second
Maximum Print Width
108 mm
Maximum Label Width
114 mm
Maximum Label Roll Size
208 mm OD
Maximum Ribbon Length
450 m or 81 mm OD
Maximum Ribbon Width
112 mm
Ribbon Wind Direction
Inside or Outside
Ribbon Core Size
25 mm
Communication Protocol
Serial, USB, Ethernet Parallel available as an option WiFi available as an option
Additional Options
Peel and Present, Internal Rewinder
Weight
11 kg
Industry
Fitness, Hospitality, Laboratory and Education, Manufacturing or Processing Food and Beverage, Materials Handling, Medical, Retail Food, Retail Meat and Seafood, Retail Non-Food, Retail Pharmacies and Veterinary Care, Retail Supermarkets
Packaging Equipment
Auto Weigh Wrap Labelers, Bag Sealing Machines

Product brochures

WTPTM2408E Industrial Thermal Label Printer Brochure Download
What’s the best way to care for my thermal printhead?

Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.
